Introduction

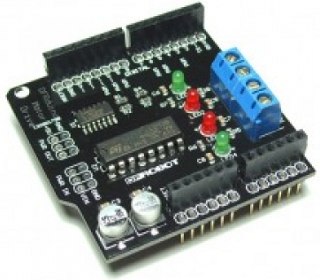

This Motor shield  for Arduino uses L293 chip which allow to drive two 7-12V DC motors with maximum 1A current. This shield can be directly mount onto standard Arduino Duemilanove and Arduino Mega.

Specification

• 2 way 7-12V motor drive
• Up to 1A current each way
• Pin 5,6,7,8 are used to drive two DC motor
• Support PWM speed control


Documents

Manual
