Introduction

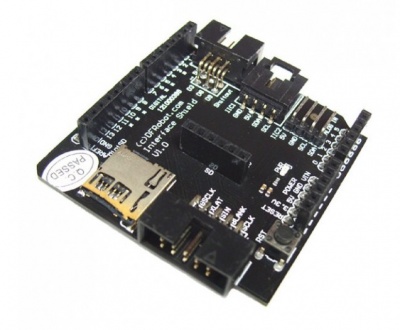

This interface shield supports multi-interfaces, SPI interface (directly connected Shiftout module,SPI LCD display module, SPI LED display module), IIC Interface (direct connects IIC lCD display module, IIC transfer IO module), Micro SD card interface (Micro SD card can be directly inserted),SD card storage module interface, TLC full-color LED controller module.

Specification

• Multi-function expansion board
• Compatible with Arduino
• Supports SPI Interface, IIC interfaces, SD card, TLC5940

Documents

• Fat Library
• TLC Library
• Schematics

Compability

• Arduino UNO
• Arduino Duemilanove
• Arduino Mega 1280/2560 (Not compatible)
